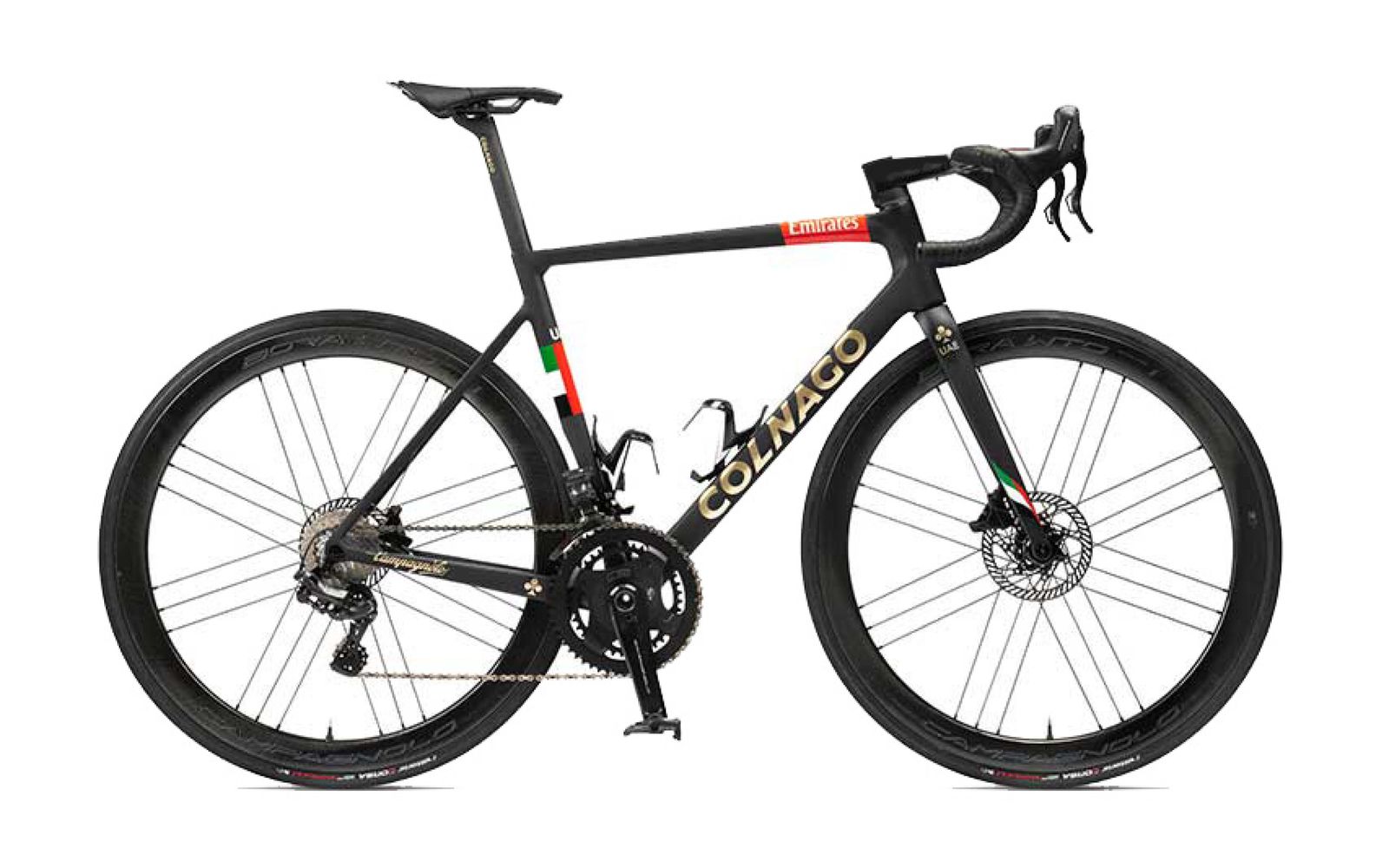

V3Rs Frozen Disc 2022 | Shimano Dura-Ace Di2 12s | Colnago

THE COLNAGO MONOCOQUE FRAME READY TO MAKE YOUR DREAMS COME TRUE

Colnago V3Rs Disc is a true racing frame, no compromises. Every detail has been studied and developed to obtain the maximum in terms of performance while keeping an eye to comfort.

GROUPSET AND WHEELSET

The proposed version mounts the complete 12-speed Shimano Ultegra Di2 groupset that guarantees a high level of performance and quality for the most demanding cyclists. The groupset is available with 11/25, 11/28, 11/30 or 11/32 cassette combinations and 34/50, 36/52 o 39/53 chainring combinations.

Together with the groupset, the bicycle is proposed with the new Fulcrum Wind 40 DB carbon wheel set characterized by the aerodynamic unidirectional finish, new aluminum hubs, USB ceramic cone-cap system to optimize the performance. Perfectly compatible with clincher and tubeless tires.

THE DESIGN

While retaining some details from the two frames that preceded it, V1-r and V2-r, the V3Rs design has profoundly changed to align with some standards that have been consolidated in recent years, not least the possibility of mounting larger tyres – up to 28 inches. It’s extremely clean and boasts excellent aerodynamic qualities together with an unprecedented lightness.

GEOMETRY

What is the point of making a light bike if you can’t ride it effectively? For this reason, the geometry has been completely redesigned. The main features are the shorter head tube, the longer fork and a greater balance across all eight size options. The height of the bottom bracket has also been changed, it is lower, to improve the driveability of the bicycle with increased tyres (28c).

CARBON FIBRE

To reach a new weight target of 790 grams for the size 50s in the raw disc version (including the metal components) we used a new type of carbon fibre that allowed Colnago to significantly increase the rigidity to lateral flexions. The new V3Rs, compared to the V2-r, has a 12% higher rigidity in the rear compartment and 6% in the front head tube area. Its ability to absorb vertical shocks has improved significantly, which translates into greater comfort.

THE FORK

Completely new and redesigned, the V3Rs fork is much lighter compared to that of the V2-r. Its raw weight (uncut) corresponds to 390 grams, TFS integrated steerer thread included. In a 50s size, which we can consider an average size, the cut fork can weigh just 340 grams. The new shape with concave sheaths in the upper part (front view) optimizes the wheel passage allowing the use of wide tyres (28c), along with comfort and lateral rigidity.

COCKPIT AREA

While the rim brake version is based on the use of dual-pivot brakes with direct mounting and external cable routing, the disc version uses the exclusive TFS Integrated fork system. The cables pass entirely, internally to the Colnago Sr9 stem and then through the fork steerer. The frame is thus extremely clean and technically more aerodynamic.

SEATPOST CLOSURE

Much of the effort has been concentrated in this area of the frame, both to reduce the overall weight of the locking system and to increase its functionality, power and safety. The new locking system is therefore smaller if compared to that of the V2-r and C64, integrated into the frame and allows a greater modulation in tightening.

Could you be interested in Colnago V3Rs complete bicycle? Here you can find Campagnolo Super Record EPS option!
